We solved perfectly the matter of breaking of core pins with mold structure during the mass production.
양산시 코어핀의 부러짐 현상을 금형 구조로 완벽하게 해결 했음니다.몰드 베이스의 판 두게를 적정하게 사용,변형을 최소화 했음니다.
|
|
| ▣

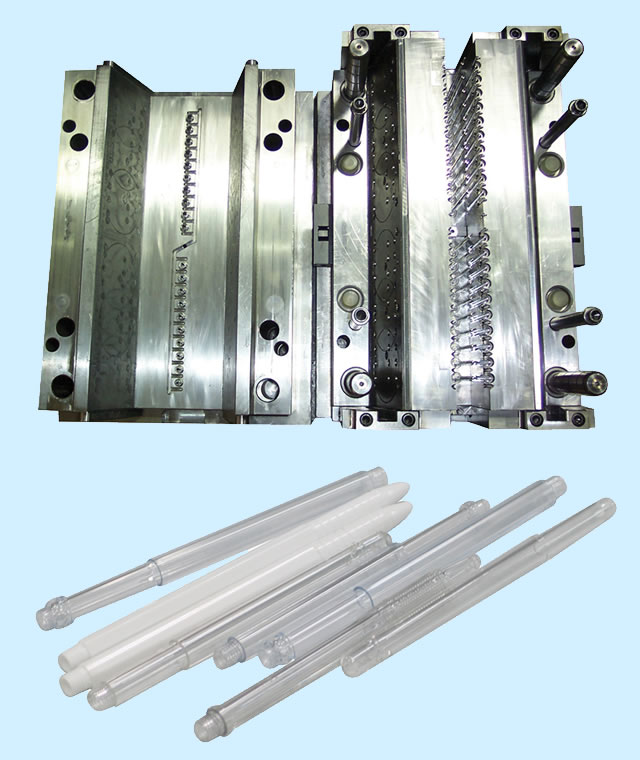

Subject : BARREL-16,20 CAVITY,1SET SLIDE MOLD |
▶ Filename :
s_barrel_l.jpg /
▶ SIZE : 640 X 760 [Image
Download]
 Standard > Barrel |
| MOLD BASE |
KP4, FUTABA TYPE OF KISHIN |
| MOLD TYPE |
SLIDE TYPE MOLD |
| MAIN CORE MATRIAL |
ASSAB - XW10, STAVAX |
| HEAT TREATMENT
|
HRC 55~65 DEGREES |
| CORE PART STRUCTURE
|
CHANGEABLE CAVITY |
| THE QUANTITY OF CAVITY |
16, 20, 24 |
| SPECIAL QUALITY |
|
| CONTENT |
BARREL-16,20 CAVITY,1SET SLIDE MOLD |
|
|
